ADS7842E

4-channel, 12-bit, Analog-to-Digital Converter (ADC), SSOP-28, single supply 2.7v to 5v

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.57~3.97 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.57~3.97

PartNumber:: ADS7842E

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-29

From Other Seller

Part Number:ADS7842E
US $3.57 - 3.97
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

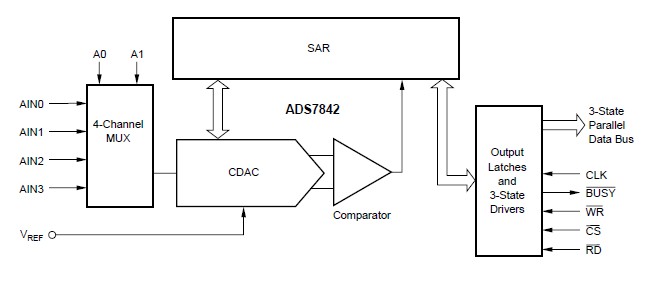

The ADS7842E is a complete, 4-channel, 12-bit Analog-to-Digital Converter (ADC). It contains a 12-bit, capacitorbased, Successive Approximation Register (SAR) ADC with a sample-and-hold amplifier, interface for microprocessor use, and parallel, 3-state output drivers. The ADS7842E is specified at a 200kHz sampling rate while dissipating only 2mW of power. The reference voltage can be varied from 100mV to VCC with a corresponding LSB resolution from 24μV to 1.22mV. The ADS7842E is tested down to 2.7V operation. Low power, high speed, and an onboard multiplexer make the ADS7842E ideal for battery-operated systems such as portable, multi-channel dataloggers and measurement equipment.

Parametrics

ADS7842E absolute maximum ratings: (1)+VCC to GND: –0.3V to +6V; (2)Analog Inputs to GND:–0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: –0.3V to +6V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7842E features: (1)single supply: 2.7v to 5v; (2)4-channel input multiplexer; (3)up to 200khz sampling rate; (4)full 12-bit parallel interface; (5)±1LSB inl and dnl; (6)no missing codes; (7)72dB sinad; (8)low power: 2mW; (9)SSOP-28 package.
