Product Summary
The XTR101AUG4 is a precision, low drift 4-20mA two-wire transmitter. The XTR101AUG4 is a microcircuit, 4-20mA, two-wireb transmitter containing a high accuracy instrumentation amplifier (IA), a voltage-controlled output current source, and dual-matched precision current reference. This combination of the XTR101AUG4 is ideally suited for remote signal conditioning of a wide variety of transducers such as thermocouples, RTDs, thermistors, and strain gauge bridges. State-of-theart design and laser-trimming, wide temperature range operation, and small size make it very suitable for industrial process control applications. In addition, the optional external transistor of the XTR101AUG4 allows even higher precision.
Parametrics
XTR101AUG4 absolute maximum ratings: (1)Power Supply, +VCC: 40V; (2)Input Voltage ≥ VOUT, ≤ +VCC; (3)Storage Temperature Range, Ceramic: 55℃ to +165℃; (4)Plastic: 55℃ to +125℃; (5)Lead Temperature (soldering, 10s) G, P: +300℃; (6)(wave soldering, 3s) U: +260℃; (7)Output Short-Circuit Duration: Continuous +VCC to IOUT; (8)Junction Temperature: +165℃.
Features
XTR101AUG4 features: (1)Instrumentation amplifier input; (2)True two-wire operation; (3)Dual matched current sources; (4)Wide supply range: 11.6V to 40V; (5)Specification range: -40℃ to +85℃; (6)Small dip-14 package, ceramic and plastic.

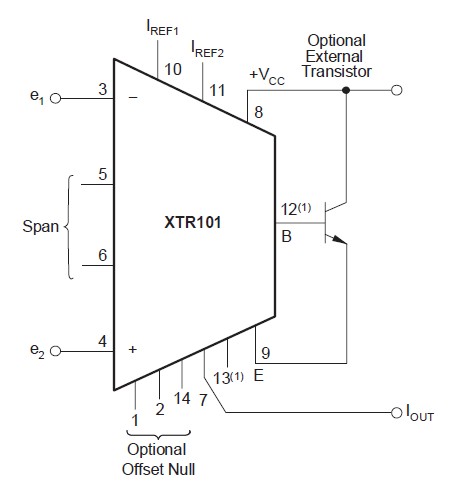

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XTR101AUG4 |
Texas Instruments |
Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
XTR100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
XTR101 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
XTR101AG |
Texas Instruments |
Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr |
Data Sheet |
|
|
||||||||||||
|
XTR101AP |
Texas Instruments |
Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr |
Data Sheet |
|
|
||||||||||||
|
XTR101APG4 |
Texas Instruments |
Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr |
Data Sheet |
|
|
||||||||||||
|
XTR101AU |
Texas Instruments |
Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr |
Data Sheet |
|
|
||||||||||||
