TPS70151PWPG4

Product Summary

The TPS70151PWPG4 device is a voltage regulator designed to provide a complete power management solution for TI DSP, processor power, ASIC, FPGA, and digital applications where dual output voltage regulators are required. Easy programmability of the sequencing function makes this family ideal for any TI DSP applications with power sequencing requirement. Differentiated features, such as accuracy, fast transient response, SVS supervisory circuit (power on reset), manual reset inputs, and enable function, provide a complete system solution. The TPS70151PWPG4 voltage regulator offers very low dropout voltage and dual outputs with power up sequence control, which is designed primarily for DSP applications. The TPS70151PWPG4 has low noise output performance without using any added filter bypass capacitors and are designed to have a fast transient response and be stable with 47 μF low ESR capacitors.

Parametrics

TPS70151PWPG4 absolute maximum ratings: (1)Input voltage range: VIN1: -0.3 V to 7 V; VIN2: -0.3 V to 7 V; (2)Voltage range at EN: -0.3 V to 7 V; (3)Output voltage range (VOUT1, VSENSE1): 5.5 V; (4)Output voltage range (VOUT2, VSENSE2): 5.5 V; (5)Maximum RESET, PG1 voltage: 7 V; (6)Maximum MR1, MR2, and SEQ voltage: VIN1; (7)Peak output current: Internally limited; (8)Continuous total power dissipation: See Dissipation Rating Table; (9)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (10)Storage temperature range, Tstg: -65℃ to 150℃; (11)ESD rating, HBM: 2 kV.

Features

TPS70151PWPG4 features: (1)Dual Output Voltages for Split-Supply Applications; (2)Selectable Power Up Sequencing for DSP Applications (See TPS704xx for Independent Enabling of Each Output); (3)Output Current Range of 1 A on Regulator 1 and 2 A on Regulator 2; (4)Fast Transient Response; (5)Voltage Options Are 3.3-V/2.5-V, 3.3-V/1.8-V, 3.3-V/1.5-V, 3.3-V/1.2-V, and Dual Adjustable Outputs; (6)Open Drain Power-On Reset With 120-ms Delay; (7)Open Drain Power Good for Regulator 1; (8)Ultralow 185 μA (typ) Quiescent Current; (9)2 μA Input Current During Standby; (10)Low Noise: 78 μVRMS Without Bypass Capacitor; (11)Quick Output Capacitor Discharge Feature; (12)Two Manual Reset Inputs; (13)2% Accuracy Over Load and Temperature; (14)Undervoltage Lockout (UVLO) Feature; (15)24-Pin PowerPAD. TSSOP Package; (16)Thermal Shutdown Protection.

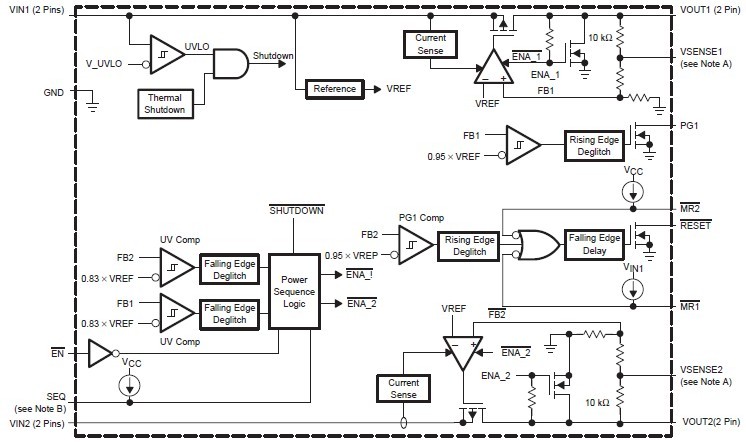

Diagrams
