Product Summary

The TLV2211IDBVR is a single operational amplifier manufactured using the Texas Instruments Advanced LinCMOS process. The TLV2211IDBVR is optimized and fully specified for single-supply 3-V and 5-V operation. For this low-voltage operation combined with micropower dissipation levels, the input noise voltage performance has been dramatically improved using optimized design techniques for CMOS-type amplifiers. Another added benefit is that this amplifier exhibits rail-to-rail output swing. The output dynamic range can be extended using the TLV2211IDBVR with loads referenced midway between the rails. The common-mode input voltage range is wider than typical standard CMOS-type amplifiers.

Parametrics

TLV2211IDBVR absolute maximum ratings: (1)Supply voltage, VDD: 12 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI (any input): –0.3 V to VDD; (4)Input current, II (each input): ±5 mA; (5)Output current, IO: ±50 mA; (6)Total current into VDD+: ±50 mA; (7)Total current out of VDD–: ±50 mA; (8)Duration of short-circuit current (at or below) 25℃: unlimited; (9)Operating free-air temperature range, TA: –40℃ to 85℃; (10)Storage temperature range, Tstg: –65℃ to 150℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: DBV package: 260℃.

Features

TLV2211IDBVR features: (1)Output Swing Includes Both Supply Rails; (2)Low Noise: 21 nV/√Hz Typ at f = 1 kHz; (3)Low Input Bias Current: 1 pA Typ; (4)Very Low Power: 13 μA Per Channel Typ; (5)Common-Mode Input Voltage Range Includes Negative Rail; (6)Wide Supply Voltage Range 2.7 V to 10 V; (7)Available in the SOT-23 Package; (8)Macromodel Included.

Diagrams

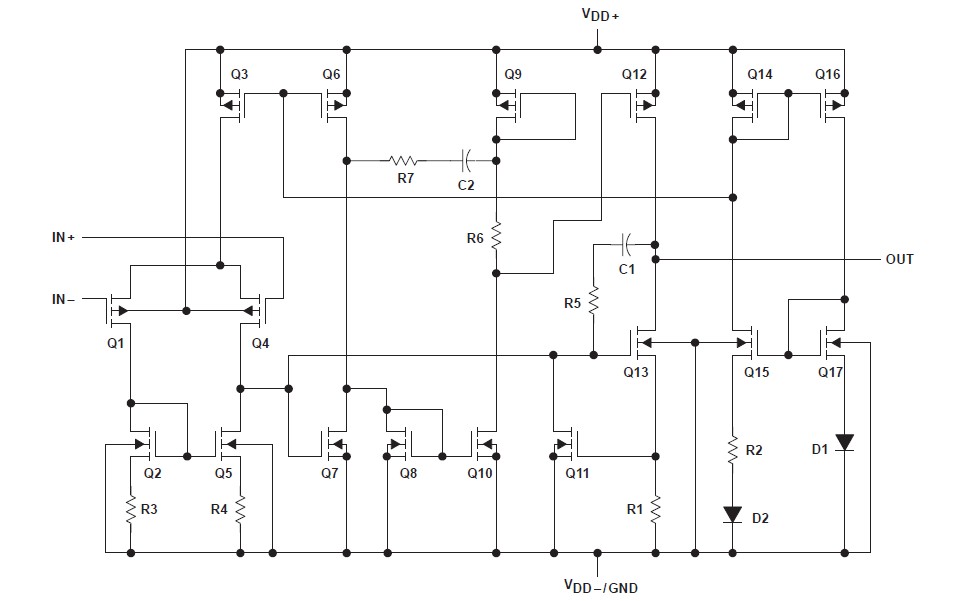

TLV2211IDBVR equivalent schematic
