Product Summary

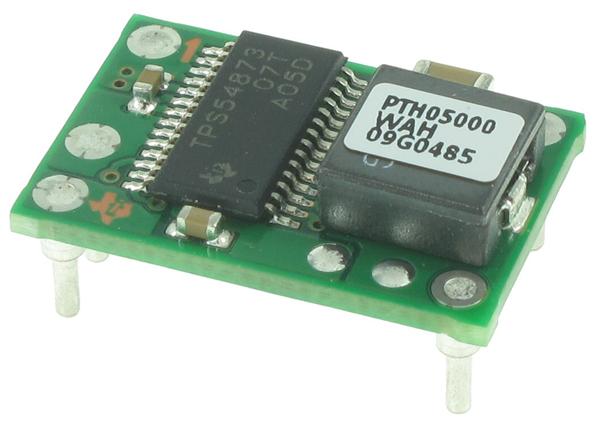

The PTH05000WAH is a non-isolated power module. It is small in size and high on performance. Using double-sided surface mount construction and synchronous rectification technology, the PTH05000WAH delivers up to 6 A of output current while occupying a PCB area of about half the size of a standard postage stamp. The device is an ideal choice for applications where space, performance and cost are important design constraints. Target applications of the PTH05000WAH include telecom, industrial, and general purpose circuits, including low-power dual-voltage systems that use a DSP, microprocessor, or ASIC. Package options include both through-hole and surface mount configurations.
Parametrics
PTH05000WAH absolute maximum ratings: (1)Operating Temperature Range, Ta: –40 to +85℃; (2)Solder Reflow Temperature, Treflow: 235℃ max; (3)Storage Temperature, Ts: –40 to +125℃; (4)Over Temperature Protection ,OTP: 150℃; (5)Mechanical Shock: 500 Gs; (6)Mechanical Vibration: 20 Gs; (7)Weight: 2 grams.
Features
PTH05000WAH features: (1)Up to 6-A Output Current; (2)5-V Input Voltage; (3)Wide-Output Voltage Adjust (0.9 V to 3.6 V); (4)Efficiencies up to 94 %; (5)160 W/in3 Power Density; (6)On/Off Inhibit; (7)Under-Voltage Lockout; (8)Output Current Limit; (9)Pre-Bias Startup Capability; (10)Over-Temperature Protection; (11)Surface Mountable; (12)Operating Temp: –40 to +85℃; (13)Safety Agency Approvals (Pending): UL 1950, CSA 22.2 950, EN60950 & VDE.

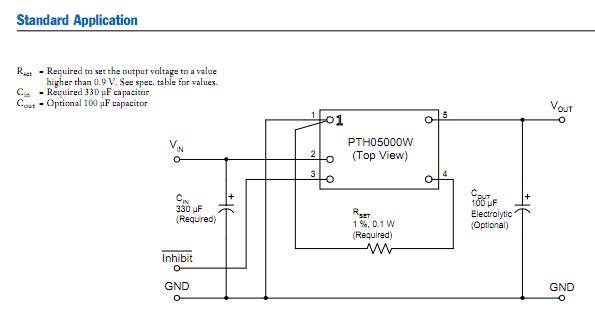

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PTH05000WAH |
Texas Instruments |
DC/DC Converters 6A 5VInput Wide-Out Adj Plug-in Pwr Mod |
Data Sheet |
|
|
||||||||||||
