Product Summary

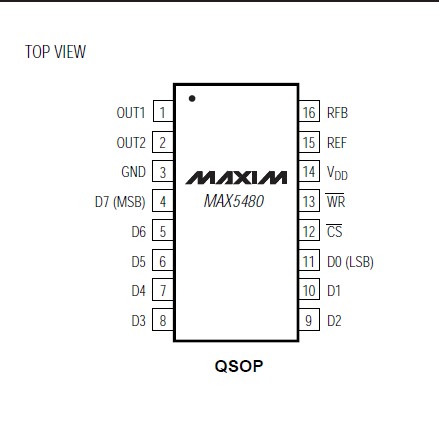

The MAX5480BCEE+T is a CMOS, 8－bit digital－to－analog converter (DAC) that interfaces directly with most microprocessors. On－chip input latches make the DAC load cycle interface similar to a RAM write cycle, where CS and WR are the only control inputs required. Linearity of ±1/2LSB is guaranteed, and power consumption is less than 500uW. Monotonicity is guaranteed over the full operating temperature range. The MAX5480BCEE+T can be operated in either voltage－output or current－output mode. The MAX5480BCEE+T is available in a small 16－pin QSOP package.
Parametrics
MAX5480BCEE+T absolute maximum ratings: (1)VDD to GND: －0.3V to +17V; (2)REF to GND : ±25V; (3)RFB to GND : ±25V; (4)Digital Inputs to GND : －0.3V to (VDD + 0.3V); (5)OUT1, OUT2 to GND: －0.3V to VDD; (6)Lead Temperature (soldering 10sec): +300℃.
Features
MAX5480BCEE+T features: (1)QSOP 16 Package (same footprint as SO 8); (2)Single +5V Supply Operation; (3)VOUT or IOUT Operation; (4)8-Bit Parallel Interface; (5)Guaranteed Monotonic Over Temperature; (6)Low Power Consumption 100uA max; (7)±1/2LSB Linearity Over Temperature.
