Product Summary
The LM124J is a quadruple operational amplifier. The LM124J consists of four independent, high gain, internally frequency compensated operational amplifier which were designed specifically to operate from a single power supply over a wide range of voltages. Operation of the LM124J from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Parametrics
LM124J absolute maximum ratings: (1)Power Dissipation: CERDIP 400mW. CERPACK 350mW. Ceramic SOIC 350mW; (2)Supply Voltage, V+: 36VDC or +18VDC; (3)Input Voltage Differential: 30VDC; (4)Input Voltage: -0.3VDC to +32VDC; (5)Input Current (VIN < .0.3VDC): 10 to 0.1mA; (6)Output Short-Circuit to GND V+ ≤ 15VDC and TA = 25℃ (One Amplifier): Continuous; (7)Operating Temperature Range: -55℃ ≤ TA ≤ +125℃; (8)Maximum Junction Temperature: 175℃; (9)Storage Temperature Range: -65℃ ≤ TA ≤ +150℃; (10)Lead Temperature (Soldering, 10 seconds): 260℃.
Features
LM124J features: (1)Internally frequency compensated for unity gain; (2)Large DC voltage gai100 dB; (3)Wide bandwidth (unity gain) 1 MHz (temperature compensated); (4)Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V; (5)Very low supply current drai(700 μA)—essentially independent of supply voltage; (6)Low input biasing current 45 nA (temperature compensated); (7)Low input offset voltage 2 mV and offset current: 5 nA.

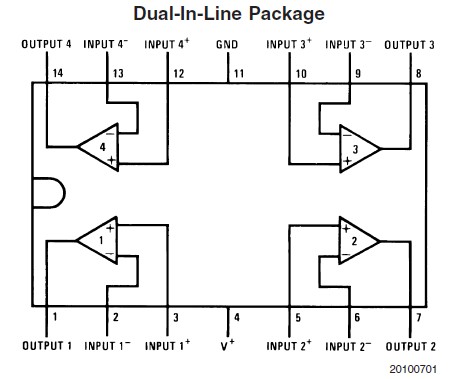

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM124J |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||||||||||
 |
LM124J/PB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps QUAD OP AMP |
Data Sheet |
|
|
||||||||||||
