Product Summary

The DCP010515DBP is a 1W, unregulated, isolated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the device provides extra features such as output disable and synchronization of switching frequencies. The applications of the DCP010515DBP include point-of-use power conversion, ground loop elimination, data acquisition, industrial control and instrumentation and test equipment.

Parametrics

DCP010515DBP absolute maximum ratings: (1)Input Voltage: 5V Input Models: 7V; 24V Input Models: 29V; (2)Storage Temperature: –60 to +125℃; (3)Lead Temperature (soldering, 10s): 270℃.

Features

DCP010515DBP features: (1)up to 85% efficiency; (2)thermal protection; (3)device-to-device synchronization; (4)short circuit protection; (5)EN55022 class B EMC performance; (6)UL1950 recognized component; (7)JEDEC PDIP-14 and gull-wing packages.

Diagrams

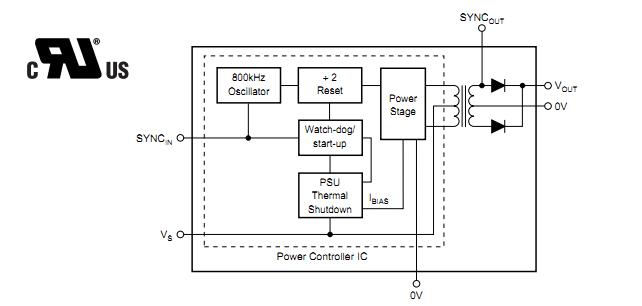

DCP010515DBP block diagram
